Create a Social App

Build an app that lets you broadcast and receive status updates using AT Record Lexicons.

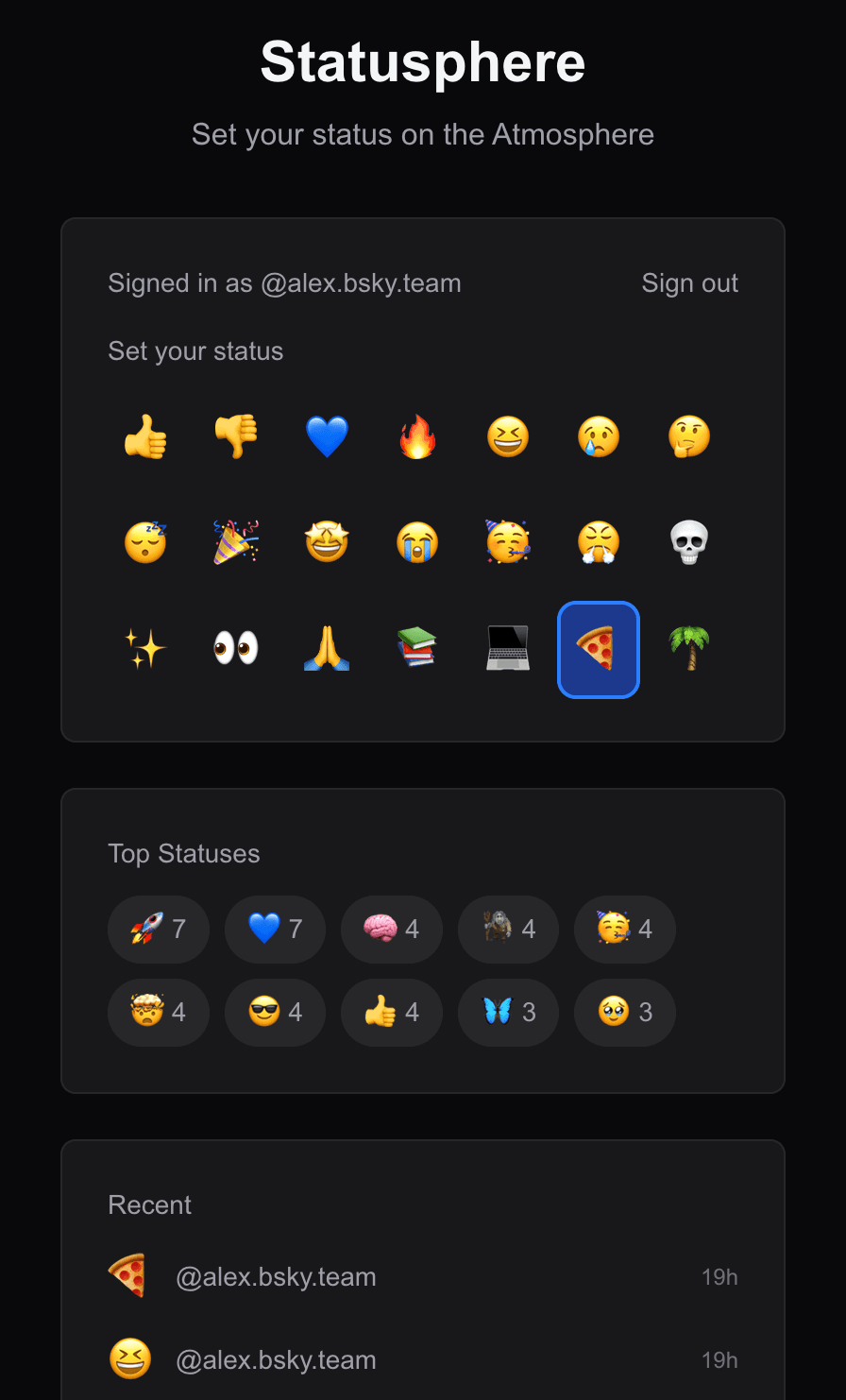

In this tutorial, you'll build a status-setting app using custom Lexicons and real-time sync.

You can find the source code for this tutorial in the statusphere-example-app repository.

Prerequisites

This tutorial builds on top of the app created in our OAuth with NextJS Tutorial. You should have a completed NextJS OAuth app before starting this tutorial. If you want to skip that step, you can clone the completed OAuth app from the Cookbook.

You should have installed:

  • Node.js 18+
  • Go 1.25+
  • The pnpm package manager

On platforms supported by homebrew, you can install them with:

brew install node pnpm go

Begin by adding these Atproto libraries to your existing project:

pnpm add @atproto/common-web @atproto/lex @atproto/syntax @atproto/tap

You should also have our lex CLI tool installed globally:

npm install -g @atproto/lex

You'll begin by adding Lexicons to your project.

Part 1: Lexicons

Lexicons define the schema for records in Atproto. To create this tutorial, we've already published a new "Statusphere" Lexicon to our repository, available at xyz.statusphere.status. You can use lex to download and build this Lexicon into your project:

lex install xyz.statusphere.status

If you want, you can view the downloaded Lexicon file at lib/lexicons/xyz.statusphere.status.json. From here, you can run lex build to generate TypeScript types for all of your installed Lexicons:

lex build --importExt=\"\"

You could add this command to package.json if you needed, but we won't be using it again in this tutorial now that our Lexicons have been built. If you ever add another Lexicon to a project with lex install, you'll need to re-run lex build with the --override flag to regenerate the types.

One more thing you should do now is update the SCOPE constant in lib/auth/client.ts to request access to this collection. Atproto permission scopes are Lexicons, so you can add xyz.statusphere.status to the list of scopes your app requests:

export const SCOPE = "atproto repo:xyz.statusphere.status";

Now you can move on to creating the database schema.

Part 2: Database Schema

Update lib/db/index.ts to add new tables:

export interface DatabaseSchema {
  auth_state: AuthStateTable;
  auth_session: AuthSessionTable;
  account: AccountTable;   // New
  status: StatusTable;     // New
}

// ... existing auth tables ...

export interface AccountTable {
  did: string;
  handle: string;
  active: 0 | 1;
}

export interface StatusTable {
  uri: string;
  authorDid: string;
  status: string;
  createdAt: string;
  indexedAt: string;
  current: 0 | 1;
}

Next, add the migrations script that creates these tables. If you're building on top of the OAuth tutorial and have already deployed/migrated your database, you'll want to put these in a new migration, e.g. called "002", in lib/db/migrations.ts:

const migrations: Record<string, Migration> = {
  "001": {} // existing migrations for auth tables
  "002": {
    async up(db: Kysely<unknown>) {
      await db.schema
        .createTable("account")
        .addColumn("did", "text", (col) => col.primaryKey())
        .addColumn("handle", "text", (col) => col.notNull())
        .addColumn("active", "integer", (col) => col.notNull().defaultTo(1))
        .execute();

      await db.schema
        .createTable("status")
        .addColumn("uri", "text", (col) => col.primaryKey())
        .addColumn("authorDid", "text", (col) => col.notNull())
        .addColumn("status", "text", (col) => col.notNull())
        .addColumn("createdAt", "text", (col) => col.notNull())
        .addColumn("indexedAt", "text", (col) => col.notNull())
        .addColumn("current", "integer", (col) => col.notNull().defaultTo(0))
        .execute();

      await db.schema
        .createIndex("status_current_idx")
        .on("status")
        .columns(["current", "indexedAt"])
        .execute();
    },
    async down(db: Kysely<unknown>) {
      await db.schema.dropTable("status").execute();
      await db.schema.dropTable("account").execute();
      await db.schema.dropTable("auth_session").execute();
      await db.schema.dropTable("auth_state").execute();
    },
  },
};

You can run pnpm migrate to apply these new migrations to your database. Now, to actually build the app logic!

Part 3: Status Submission

First you'll build the feature that allows users to write their status to their PDS. Create a new API route at app/api/status/route.ts:

import { NextRequest, NextResponse } from "next/server";
import { Client } from "@atproto/lex";
import { getSession } from "@/lib/auth/session";
import { getOAuthClient } from "@/lib/auth/client";
import * as xyz from "@/src/lexicons/xyz";

export async function POST(request: NextRequest) {
  const session = await getSession();
  if (!session) {
    return NextResponse.json({ error: "Unauthorized" }, { status: 401 });
  }

  const { status } = await request.json();

  if (!status || typeof status !== "string") {
    return NextResponse.json({ error: "Status is required" }, { status: 400 });
  }

  const client = await getOAuthClient();
  const oauthSession = await client.restore(session.did);
  const lexClient = new Client(oauthSession);

  const createdAt = new Date().toISOString();
  const res = await lexClient.create(xyz.statusphere.status, {
    status,
    createdAt,
  });

  return NextResponse.json({
    success: true,
    uri: res.uri,
  });
}

This verifies that a user is logged in, creates a lex Client with their OAuth session, and then creates a new xyz.statusphere.status record with the submitted status text.

Next, create a Status picker component at components/StatusPicker.tsx:

"use client";

import { useState } from "react";
import { useRouter } from "next/navigation";

const EMOJIS = ["👍", "👎", "💙", "🔥", "😆", "😢", "🤔", "😴", "🎉", "🤩", "😭", "🥳", "😤", "💀", "✨", "👀", "🙏", "📚", "💻", "🍕", "🌴"];

interface StatusPickerProps {
  currentStatus?: string | null;
}

export function StatusPicker({ currentStatus }: StatusPickerProps) {
  const router = useRouter();
  const [selected, setSelected] = useState<string | null>(currentStatus ?? null);
  const [loading, setLoading] = useState(false);

  async function handleSelect(emoji: string) {
    setLoading(true);
    setSelected(emoji);

    try {
      const res = await fetch("/api/status", {
        method: "POST",
        headers: { "Content-Type": "application/json" },
        body: JSON.stringify({ status: emoji }),
      });

      if (!res.ok) {
        throw new Error("Failed to update status");
      }

      router.refresh();
    } catch (err) {
      console.error("Failed to update status:", err);
      setSelected(currentStatus ?? null);
    } finally {
      setLoading(false);
    }
  }

  return (
    <div>
      <p className="text-sm text-zinc-500 dark:text-zinc-400 mb-3">
        Set your status
      </p>
      <div className="flex flex-wrap gap-2">
        {EMOJIS.map((emoji) => (
          <button
            key={emoji}
            onClick={() => handleSelect(emoji)}
            disabled={loading}
            className={`text-2xl p-2 rounded-lg transition-all
              ${selected === emoji
                ? "bg-blue-100 dark:bg-blue-900 ring-2 ring-blue-500"
                : "hover:bg-zinc-100 dark:hover:bg-zinc-800"
              }
              disabled:opacity-50 disabled:cursor-not-allowed`}
          >
            {emoji}
          </button>
        ))}
      </div>
    </div>
  );
}

Finally, update app/page.tsx to include the status picker:

import { getSession } from "@/lib/auth/session";
import { LoginForm } from "@/components/LoginForm";
import { LogoutButton } from "@/components/LogoutButton";
import { StatusPicker } from "@/components/StatusPicker";

export default async function Home() {
  const session = await getSession();

  return (
    <div className="flex min-h-screen items-center justify-center bg-zinc-50 dark:bg-zinc-950">
      <main className="w-full max-w-md mx-auto p-8">
        <div className="text-center mb-8">
          <h1 className="text-3xl font-bold text-zinc-900 dark:text-zinc-100 mb-2">
            Statusphere
          </h1>
          <p className="text-zinc-600 dark:text-zinc-400">
            Set your status on the Atmosphere
          </p>
        </div>

        <div className="bg-white dark:bg-zinc-900 rounded-lg border border-zinc-200 dark:border-zinc-800 p-6">
          {session ? (
            <div className="space-y-4">
              <div className="flex items-center justify-between mb-4">
                <p className="text-sm text-zinc-500 dark:text-zinc-400">
                  Signed in
                </p>
                <LogoutButton />
              </div>
              <StatusPicker />
            </div>
          ) : (
            <LoginForm />
          )}
        </div>
      </main>
    </div>
  );
}

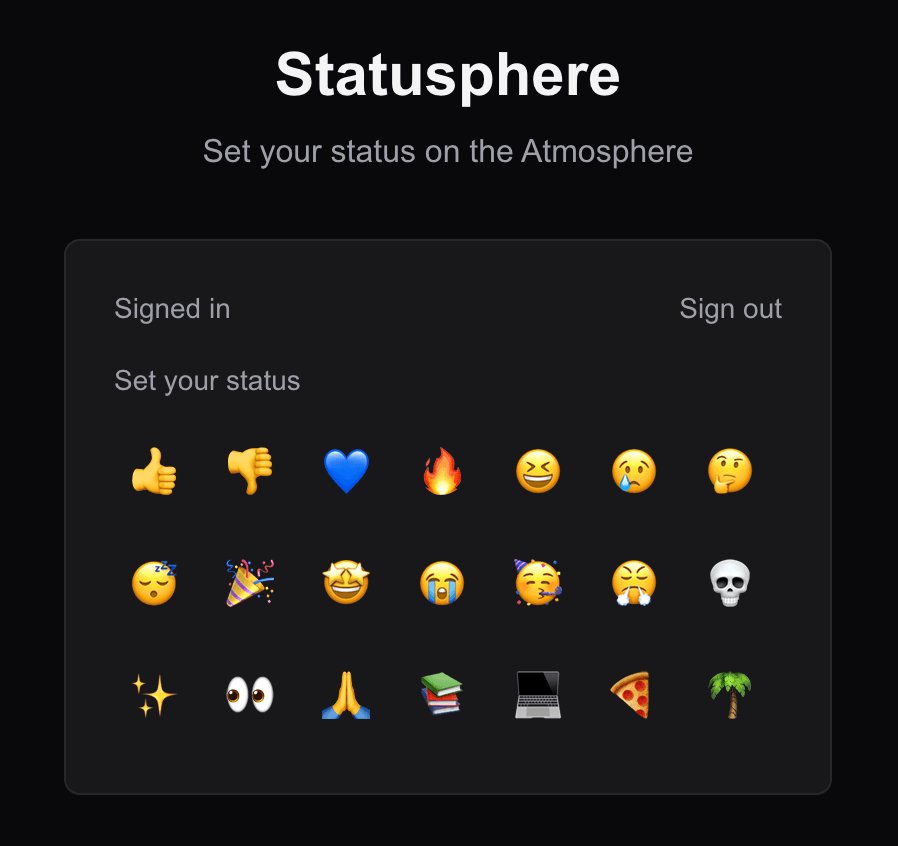

Run the app with pnpm dev — you'll be able to log in, and select an emoji to set your status!

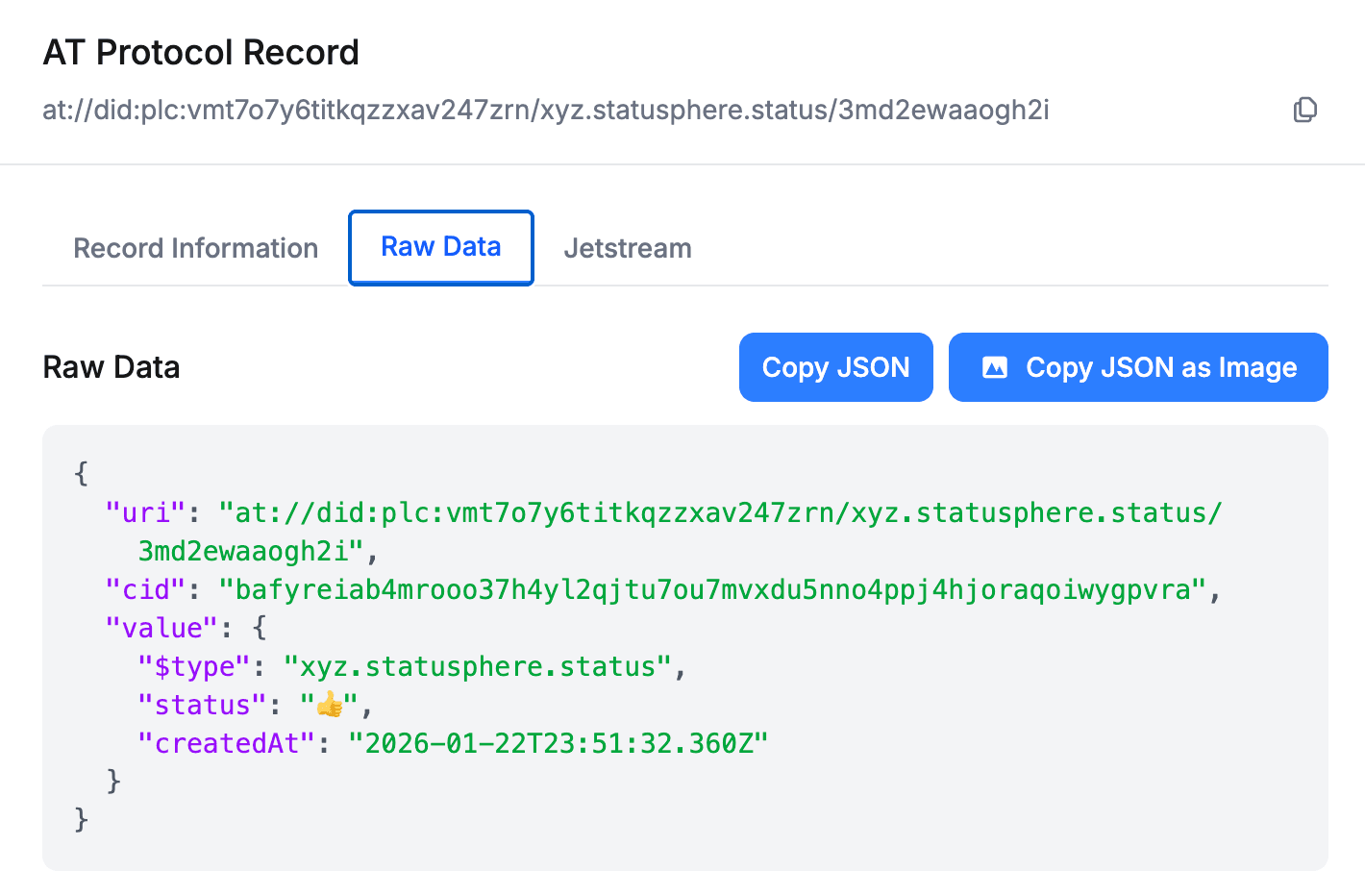

You won't yet have a way to see your status in this app, but you can look up your account on atproto.at and check the xyz.statusphere.status Lexicon to see this record.

Next, you'll add sync features to actually receive status updates.

Part 4: Realtime Sync with Tap

Tap is the best way to synchronize and stream AT Protocol records. You'll use the Tap TypeScript library to sync new records in your database. Create lib/tap/index.ts:

import { Tap } from "@atproto/tap";

const TAP_URL = process.env.TAP_URL || "http://localhost:2480";

let _tap: Tap | null = null;

export const getTap = (): Tap => {
  if (!_tap) {
    _tap = new Tap(TAP_URL);
  }
  return _tap;
};

Next, create lib/db/queries.ts with some database queries for handling Tap events:

import { getDb, AccountTable, StatusTable, DatabaseSchema } from ".";
import { AtUri } from "@atproto/syntax";
import { Transaction } from "kysely";

export async function getAccountStatus(did: string) {
  const db = getDb();
  const status = await db
    .selectFrom("status")
    .selectAll()
    .where("authorDid", "=", did)
    .orderBy("createdAt", "desc")
    .limit(1)
    .executeTakeFirst();
  return status ?? null;
}

export async function insertStatus(data: StatusTable) {
  getDb()
    .transaction()
    .execute(async (tx) => {
      await tx
        .insertInto("status")
        .values(data)
        .onConflict((oc) =>
          oc.column("uri").doUpdateSet({
            status: data.status,
            createdAt: data.createdAt,
            indexedAt: data.indexedAt,
          }),
        )
        .execute();
      setCurrStatus(tx, data.authorDid);
    });
}

export async function deleteStatus(uri: AtUri) {
  await getDb()
    .transaction()
    .execute(async (tx) => {
      await tx.deleteFrom("status").where("uri", "=", uri.toString()).execute();
      await setCurrStatus(tx, uri.hostname);
    });
}

export async function upsertAccount(data: AccountTable) {
  await getDb()
    .insertInto("account")
    .values(data)
    .onConflict((oc) =>
      oc.column("did").doUpdateSet({
        handle: data.handle,
        active: data.active,
      }),
    )
    .execute();
}

export async function deleteAccount(did: string) {
  await getDb().deleteFrom("account").where("did", "=", did).execute();
  await getDb().deleteFrom("status").where("authorDid", "=", did).execute();
}

// Helper to update which status is "current" for a user (inside a transaction)
async function setCurrStatus(tx: Transaction<DatabaseSchema>, did: string) {
  // Clear current flag for all user's statuses
  await tx
    .updateTable("status")
    .set({ current: 0 })
    .where("authorDid", "=", did)
    .where("current", "=", 1)
    .execute();
  // Set the most recent status as current
  await tx
    .updateTable("status")
    .set({ current: 1 })
    .where("uri", "=", (qb) =>
      qb
        .selectFrom("status")
        .select("uri")
        .where("authorDid", "=", did)
        .orderBy("createdAt", "desc")
        .limit(1),
    )
    .execute();
}

The setCurrStatus helper ensures only the most recent status per user has current = 1. This will be used later on.

Tap will deliver events through a webhook endpoint at app/api/webhook/route.ts:

import { NextRequest, NextResponse } from "next/server";
import { parseTapEvent, assureAdminAuth } from "@atproto/tap";
import { AtUri } from "@atproto/syntax";
import {
  upsertAccount,
  insertStatus,
  deleteStatus,
  deleteAccount,
} from "@/lib/db/queries";
import * as xyz from "@/src/lexicons/xyz";

const TAP_ADMIN_PASSWORD = process.env.TAP_ADMIN_PASSWORD;

export async function POST(request: NextRequest) {
  // Verify request is from our TAP server
  if (TAP_ADMIN_PASSWORD) {
    const authHeader = request.headers.get("Authorization");
    if (!authHeader) {
      return NextResponse.json({ error: "Unauthorized" }, { status: 401 });
    }
    try {
      assureAdminAuth(TAP_ADMIN_PASSWORD, authHeader);
    } catch {
      return NextResponse.json({ error: "Unauthorized" }, { status: 401 });
    }
  }

  const body = await request.json();
  const evt = parseTapEvent(body);

  // Handle account/identity changes
  if (evt.type === "identity") {
    if (evt.status === "deleted") {
      await deleteAccount(evt.did);
    } else {
      await upsertAccount({
        did: evt.did,
        handle: evt.handle,
        active: evt.isActive ? 1 : 0,
      });
    }
  }

  // Handle status record changes
  if (evt.type === "record") {
    const uri = AtUri.make(evt.did, evt.collection, evt.rkey);

    if (evt.action === "create" || evt.action === "update") {
      let record: xyz.statusphere.status.Main;
      try {
        record = xyz.statusphere.status.$parse(evt.record);
      } catch {
        return NextResponse.json({ success: false });
      }

      await insertStatus({
        uri: uri.toString(),
        authorDid: evt.did,
        status: record.status,
        createdAt: record.createdAt,
        indexedAt: new Date().toISOString(),
        current: 1,
      });
    } else if (evt.action === "delete") {
      await deleteStatus(uri);
    }
  }

  return NextResponse.json({ success: true });
}

Tap sends webhook events when records change anywhere on the network. Requests are validated using a shared secret; for identity events, you update the account cache, and for record events, you check if the record matches your Lexicon and insert/update/delete it in your database.

Update app/page.tsx again to fetch and pass the current user's status:

import { getAccountStatus } from "@/lib/db/queries";

// In Home function:
const accountStatus = session ? await getAccountStatus(session.did) : null;

// Add to the StatusPicker element:
<StatusPicker currentStatus={accountStatus?.status} />

This way, the StatusPicker will highlight the user's current status when the page loads.

Now, in another terminal, install and run tap from its source repository:

go install github.com/bluesky-social/indigo/cmd/tap
tap run --webhook-url=http://localhost:3000/api/webhook --collection-filters=xyz.statusphere.status

Ctrl+C your running app. Then add your data repository to Tap for tracking (you'll add other data sources later):

# Replace with your own DID below
curl -H 'Content-Type: application/json' -d '{"dids":["DID"]}' http://localhost:2480/repos/add

Restart your app with pnpm dev, complete the login flow, and you should find your saved status highlighted:

Part 5: Displaying Handles and Feeds

Finally, you'll add functionality to display user handles and a feed of statuses from all users.

First, add some additional imports to lib/db/queries.ts:

import { getHandle } from "@atproto/common-web";
import { getTap } from "@/lib/tap";

Then, add additional functions to fetch account handles and statuses:

export async function getAccountHandle(did: string): Promise<string | null> {
  const db = getDb();
  // if we've tracked to the account through Tap and gotten their account info, we'll load from there
  const account = await db
    .selectFrom("account")
    .select("handle")
    .where("did", "=", did)
    .executeTakeFirst();
  if (account) return account.handle;
  // otherwise we'll resolve the accounts DID through Tap which provides identity caching
  try {
    const didDoc = await getTap().resolveDid(did);
    if (!didDoc) return null;
    return getHandle(didDoc) ?? null;
  } catch {
    return null;
  }
}

export async function getRecentStatuses(limit = 5) {
  const db = getDb();
  return db
    .selectFrom("status")
    .innerJoin("account", "status.authorDid", "account.did")
    .selectAll()
    .orderBy("createdAt", "desc")
    .limit(limit)
    .execute();
}

export async function getTopStatuses(limit = 10) {
  const db = getDb();
  return db
    .selectFrom("status")
    .select(["status", db.fn.count("uri").as("count")])
    .where("current", "=", 1)
    .groupBy("status")
    .orderBy("count", "desc")
    .limit(limit)
    .execute();
}

Next, update app/page.tsx to display the full feed with top statuses, handles, and timestamps:

import { getSession } from "@/lib/auth/session";
import {
  getAccountStatus,
  getRecentStatuses,
  getTopStatuses,
  getAccountHandle,
} from "@/lib/db/queries";
import { LoginForm } from "@/components/LoginForm";
import { LogoutButton } from "@/components/LogoutButton";
import { StatusPicker } from "@/components/StatusPicker";

export default async function Home() {
  const session = await getSession();
  const [statuses, topStatuses, accountStatus, accountHandle] =
    await Promise.all([
      getRecentStatuses(),
      getTopStatuses(),
      session ? getAccountStatus(session.did) : null,
      session ? getAccountHandle(session.did) : null,
    ]);

  return (
    <div className="flex min-h-screen items-center justify-center bg-zinc-50 dark:bg-zinc-950">
      <main className="w-full max-w-md mx-auto p-8">
        <div className="text-center mb-8">
          <h1 className="text-3xl font-bold text-zinc-900 dark:text-zinc-100 mb-2">
            Statusphere
          </h1>
          <p className="text-zinc-600 dark:text-zinc-400">
            Set your status on the Atmosphere
          </p>
        </div>

        {session ? (
          <div className="bg-white dark:bg-zinc-900 rounded-lg border border-zinc-200 dark:border-zinc-800 p-6 mb-6">
            <div className="flex items-center justify-between mb-4">
              <p className="text-sm text-zinc-500 dark:text-zinc-400">
                Signed in as @{accountHandle ?? session.did}
              </p>
              <LogoutButton />
            </div>
            <StatusPicker currentStatus={accountStatus?.status} />
          </div>
        ) : (
          <div className="bg-white dark:bg-zinc-900 rounded-lg border border-zinc-200 dark:border-zinc-800 p-6 mb-6">
            <LoginForm />
          </div>
        )}

        {topStatuses.length > 0 && (
          <div className="bg-white dark:bg-zinc-900 rounded-lg border border-zinc-200 dark:border-zinc-800 p-6 mb-6">
            <h3 className="text-sm font-medium text-zinc-500 dark:text-zinc-400 mb-3">
              Top Statuses
            </h3>
            <div className="flex flex-wrap gap-2">
              {topStatuses.map((s) => (
                <span
                  key={s.status}
                  className="inline-flex items-center gap-1 px-3 py-1 rounded-full bg-zinc-100 dark:bg-zinc-800 text-sm"
                >
                  <span className="text-lg">{s.status}</span>
                  <span className="text-zinc-500 dark:text-zinc-400">
                    {String(s.count)}
                  </span>
                </span>
              ))}
            </div>
          </div>
        )}

        <div className="bg-white dark:bg-zinc-900 rounded-lg border border-zinc-200 dark:border-zinc-800 p-6">
          <h3 className="text-sm font-medium text-zinc-500 dark:text-zinc-400 mb-3">
            Recent
          </h3>
          {statuses.length === 0 ? (
            <p className="text-zinc-500 dark:text-zinc-400 text-sm">
              No statuses yet. Be the first!
            </p>
          ) : (
            <ul className="space-y-3">
              {statuses.map((s) => (
                <li key={s.uri} className="flex items-center gap-3">
                  <span className="text-2xl">{s.status}</span>
                  <span className="text-zinc-600 dark:text-zinc-400 text-sm">
                    @{s.handle}
                  </span>
                  <span className="text-zinc-400 dark:text-zinc-500 text-xs ml-auto">
                    {timeAgo(s.createdAt)}
                  </span>
                </li>
              ))}
            </ul>
          )}
        </div>
      </main>
    </div>
  );
}

function timeAgo(dateString: string): string {
  const now = Date.now();
  const then = new Date(dateString).getTime();
  const seconds = Math.floor((now - then) / 1000);
  if (seconds < 60) return "just now";
  const minutes = Math.floor(seconds / 60);
  if (minutes < 60) return `${minutes}m`;
  const hours = Math.floor(minutes / 60);
  if (hours < 24) return `${hours}h`;
  const days = Math.floor(hours / 24);
  return `${days}d`;
}

Now logged-in users will see "Signed in as @theirhandle" instead of just "Signed in", along with a feed of recent statuses from all users, and a "Top Statuses" section showing the most popular current statuses.

You can stop and restart your app with pnpm dev again.

One last thing — remember, you only added a single data source to tap earlier. To see statuses from across the entire network, stop and re-run tap with the --signal-collection flag:

tap run \
  --webhook-url=http://localhost:3000/api/webhook \
  --collection-filters=xyz.statusphere.status \
  --signal-collection=xyz.statusphere.status

... and you'll start seeing statuses from other users on the network!

Conclusion

You've now built a complete Atproto app that uses OAuth to sign in, a custom Lexicon to define status records, and Tap to synchronize records in real-time.

This gives you all the tools you need to continue building on AT Protocol. You can find more guides and tutorials in our Guides section, and more example apps in the Cookbook repository. Happy building!
