OAuth with NextJS Tutorial

In this tutorial, you'll build a Next.js app where users can log in with their AT Protocol identity using OAuth. If you host your own PDS, that means you can provide your own auth source for any apps in the Atmosphere.

You can find the source code for this tutorial, along with other example projects, in the Cookbook repository, under nextjs-oauth.

See a demo version running at: https://nextjs-oauth-tutorial.up.railway.app/.

Prerequisites

This OAuth tutorial does not use many Atproto concepts or dependencies. You should have a working understanding of Next.js and TypeScript.

You should have installed:

Node.js 20+
The pnpm package manager

On platforms supported by homebrew, you can install these with:

brew install node pnpm

Part 1: Project Setup

You'll start by creating a new Next.js project using the create-next-app command.

npx create-next-app@latest my-app --yes
cd my-app

Next, add the oauth-client-node package from the Atproto ecosystem, which provides OAuth client functionality.

pnpm add @atproto/oauth-client-node

That's all you need to get started! You can now run the development server with:

pnpm dev

Navigate to your app in a browser at http://127.0.0.1:3000.

In general, when working with OAuth, you should use 127.0.0.1 URLs instead of localhost. This will be important for the OAuth redirect flow to work correctly.

You should receive the Next.js starter page:

Next, you'll implement baseline OAuth functionality.

Part 2: Implementing OAuth

You'll start out implementing OAuth using a local loopback client with in-memory storage.

OAuth loopback works by using a special redirect URI (like http://127.0.0.1:PORT/callback) to send authorization codes directly back to an app, which listens on a local port, avoiding browser-based callbacks and enabling secure, direct communication for token exchange. Instead of a web redirect, the app opens a local listener, you can auth in a browser, and the server redirects back to the app's local URI, letting the app grab the code and exchange it for a token. It's particularly useful for development scenarios.

To do this, you'll implement a confidential client. Your Next.js server will hold credentials for talking to a user's PDS. The server will verify incoming requests from the browser using cookies for session auth.

First, create lib/auth/client.ts:

import {
  NodeOAuthClient,
  buildAtprotoLoopbackClientMetadata,
} from "@atproto/oauth-client-node";
import type {
  NodeSavedSession,
  NodeSavedState,
} from "@atproto/oauth-client-node";

export const SCOPE = "atproto";

// Use globalThis to persist across Next.js hot reloads
const globalAuth = globalThis as unknown as {
  stateStore: Map<string, NodeSavedState>;
  sessionStore: Map<string, NodeSavedSession>;
};
globalAuth.stateStore ??= new Map();
globalAuth.sessionStore ??= new Map();

let client: NodeOAuthClient | null = null;

export async function getOAuthClient(): Promise<NodeOAuthClient> {
  if (client) return client;

  client = new NodeOAuthClient({
    clientMetadata: buildAtprotoLoopbackClientMetadata({
      scope: SCOPE,
      redirect_uris: ["http://127.0.0.1:3000/oauth/callback"],
    }),

    stateStore: {
      async get(key: string) {
        return globalAuth.stateStore.get(key);
      },
      async set(key: string, value: NodeSavedState) {
        globalAuth.stateStore.set(key, value);
      },
      async del(key: string) {
        globalAuth.stateStore.delete(key);
      },
    },

    sessionStore: {
      async get(key: string) {
        return globalAuth.sessionStore.get(key);
      },
      async set(key: string, value: NodeSavedSession) {
        globalAuth.sessionStore.set(key, value);
      },
      async del(key: string) {
        globalAuth.sessionStore.delete(key);
      },
    },
  });

  return client;
}

stateStore is temporary storage using during the OAuth flow; sessionStore is persistent storage keyed by a user's DID. The globalThis pattern is a standard Next.js technique for persisting data across hot module reloads in development. Without this, the in-memory stores would be wiped every time you edit a file.

AT Protocol OAuth has a special carveout for local development. The client_id must be localhost and the redirect_uri must be on host 127.0.0.1. Read more in the Localhost Client Development specs.

There's no way around it — this section of the tutorial is pretty dry! You'll be implementing standard OAuth flows, which are inherently boilerplate-heavy. But once you have this baseline working, you'll be able to build on top of it!

Next, create lib/auth/session.ts to manage user sessions:

import { cookies } from "next/headers";
import { getOAuthClient } from "./client";
import type { OAuthSession } from "@atproto/oauth-client-node";

export async function getSession(): Promise<OAuthSession | null> {
  const did = await getDid();
  if (!did) return null;

  try {
    const client = await getOAuthClient();
    return await client.restore(did);
  } catch {
    return null;
  }
}

export async function getDid(): Promise<string | null> {
  const cookieStore = await cookies();
  return cookieStore.get("did")?.value ?? null;
}

Then, create app/oauth/login/route.ts. This route initiates the login flow. You only need the user's handle — with it, you can resolve the user's Authorization Server (their PDS) and redirect them there:

import { NextRequest, NextResponse } from "next/server";
import { getOAuthClient, SCOPE } from "@/lib/auth/client";

export async function POST(request: NextRequest) {
  try {
    const { handle } = await request.json();

    if (!handle || typeof handle !== "string") {
      return NextResponse.json(
        { error: "Handle is required" },
        { status: 400 }
      );
    }

    const client = await getOAuthClient();

    // Resolves handle, finds their auth server, returns authorization URL
    const authUrl = await client.authorize(handle, {
      scope: SCOPE,
    });

    return NextResponse.json({ redirectUrl: authUrl.toString() });
  } catch (error) {
    console.error("OAuth login error:", error);
    return NextResponse.json(
      { error: error instanceof Error ? error.message : "Login failed" },
      { status: 500 }
    );
  }
}

After a user approves the authorization consent screen, they'll be redirected to a callback route. Here, you'll exchange the code from the redirect for actual credentials, then set a cookie for the user's DID. Create app/oauth/callback/route.ts:

import { NextRequest, NextResponse } from "next/server";
import { getOAuthClient } from "@/lib/auth/client";

const PUBLIC_URL = process.env.PUBLIC_URL || "http://127.0.0.1:3000";

export async function GET(request: NextRequest) {
  try {
    const params = request.nextUrl.searchParams;
    const client = await getOAuthClient();

    // Exchange code for session
    const { session } = await client.callback(params);

    const response = NextResponse.redirect(new URL("/", PUBLIC_URL));

    // Set DID cookie
    response.cookies.set("did", session.did, {
      httpOnly: true,
      secure: process.env.NODE_ENV === "production",
      sameSite: "lax",
      maxAge: 60 * 60 * 24 * 7, // 1 week
      path: "/",
    });

    return response;
  } catch (error) {
    console.error("OAuth callback error:", error);
    return NextResponse.redirect(new URL("/?error=login_failed", PUBLIC_URL));
  }
}

PUBLIC_URL falls back to 127.0.0.1:3000 to ensure you always redirect to the correct host. This avoids cookie issues that arise from localhost vs 127.0.0.1 mismatches.

Next, you should also create a logout route at app/oauth/logout/route.ts to clear the user's session:

import { NextResponse } from "next/server";
import { cookies } from "next/headers";
import { getOAuthClient } from "@/lib/auth/client";

export async function POST() {
  try {
    const cookieStore = await cookies();
    const did = cookieStore.get("did")?.value;

    if (did) {
      const client = await getOAuthClient();
      await client.revoke(did);
    }

    cookieStore.delete("did");
    return NextResponse.json({ success: true });
  } catch (error) {
    console.error("Logout error:", error);
    const cookieStore = await cookies();
    cookieStore.delete("did");
    return NextResponse.json({ success: true });
  }
}

Finally, you'll make one last route, to expose the oauth-client-metadata.json at a well-known URL. This is used in ATProto OAuth to discover client configuration. Create app/oauth-client-metadata.json/route.ts:

import { getOAuthClient } from "@/lib/auth/client";
import { NextResponse } from "next/server";

// The URL of this endpoint IS your client_id
// Authorization servers fetch this to learn about your app

export async function GET() {
  const client = await getOAuthClient();
  return NextResponse.json(client.clientMetadata);
}

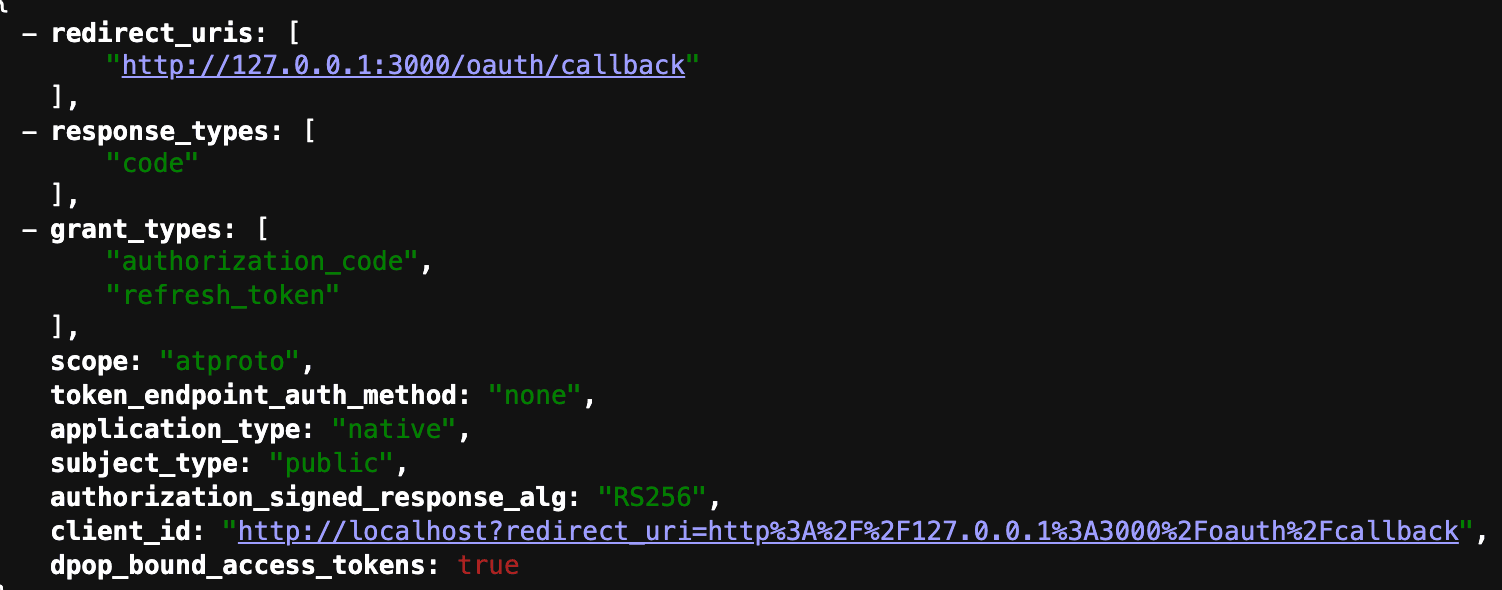

You can visit http://127.0.0.1:3000/oauth-client-metadata.json to see your client configuration.

Now you just need to add a few forms. Create components/LoginForm.tsx:

"use client";

import { useState } from "react";

export function LoginForm() {
  const [handle, setHandle] = useState("");
  const [loading, setLoading] = useState(false);
  const [error, setError] = useState<string | null>(null);

  async function handleSubmit(e: React.FormEvent) {
    e.preventDefault();
    setLoading(true);
    setError(null);

    try {
      const res = await fetch("/oauth/login", {
        method: "POST",
        headers: { "Content-Type": "application/json" },
        body: JSON.stringify({ handle }),
      });

      const data = await res.json();

      if (!res.ok) {
        throw new Error(data.error || "Login failed");
      }

      // Redirect to authorization server
      window.location.href = data.redirectUrl;
    } catch (err) {
      setError(err instanceof Error ? err.message : "Login failed");
      setLoading(false);
    }
  }

  return (
    <form onSubmit={handleSubmit} className="space-y-4">
      <div>
        <label className="block text-sm font-medium text-zinc-700 dark:text-zinc-300 mb-1">
          Handle
        </label>
        <input
          type="text"
          value={handle}
          onChange={(e) => setHandle(e.target.value)}
          placeholder="user.example.com"
          className="w-full px-3 py-2 border border-zinc-300 dark:border-zinc-700 rounded-lg bg-white dark:bg-zinc-800 text-zinc-900 dark:text-zinc-100"
          disabled={loading}
        />
      </div>

      {error && <p className="text-red-500 text-sm">{error}</p>}

      <button
        type="submit"
        disabled={loading || !handle}
        className="w-full py-2 px-4 bg-blue-600 text-white rounded-lg hover:bg-blue-700 disabled:opacity-50"
      >
        {loading ? "Signing in..." : "Sign in"}
      </button>
    </form>
  );
}

Do the same for components/LogoutButton.tsx:

"use client";

import { useRouter } from "next/navigation";

export function LogoutButton() {
  const router = useRouter();

  async function handleLogout() {
    await fetch("/oauth/logout", { method: "POST" });
    router.refresh();
  }

  return (
    <button
      onClick={handleLogout}
      className="text-sm text-zinc-500 hover:text-zinc-700 dark:text-zinc-400 dark:hover:text-zinc-200"
    >
      Sign out
    </button>
  );
}

And, finally, replace the starter app/page.tsx to use these components and show the user's DID when logged in:

import { getSession } from "@/lib/auth/session";
import { LoginForm } from "@/components/LoginForm";
import { LogoutButton } from "@/components/LogoutButton";

export default async function Home() {
  const session = await getSession();

  return (
    <div className="flex min-h-screen items-center justify-center bg-zinc-50 dark:bg-zinc-950">
      <main className="w-full max-w-md mx-auto p-8">
        <div className="text-center mb-8">
          <h1 className="text-3xl font-bold text-zinc-900 dark:text-zinc-100 mb-2">
            AT Protocol OAuth
          </h1>
          <p className="text-zinc-600 dark:text-zinc-400">
            Sign in with your AT Protocol account
          </p>
        </div>

        <div className="bg-white dark:bg-zinc-900 rounded-lg border border-zinc-200 dark:border-zinc-800 p-6">
          {session ? (
            <div className="space-y-4">
              <div className="flex items-center justify-between">
                <p className="text-sm text-zinc-600 dark:text-zinc-400">
                  Signed in as{" "}
                  <span className="font-mono">{session.did}</span>
                </p>
                <LogoutButton />
              </div>
              <p className="text-green-600">Authentication working!</p>
            </div>
          ) : (
            <LoginForm />
          )}
        </div>
      </main>
    </div>
  );
}

At this point, you should be able to test the OAuth flow!

If your app isn't already running from Part 1, start it with:

pnpm dev

Then:

Navigate to your app in a browser at http://127.0.0.1:3000.
Enter your handle
Authorize the app

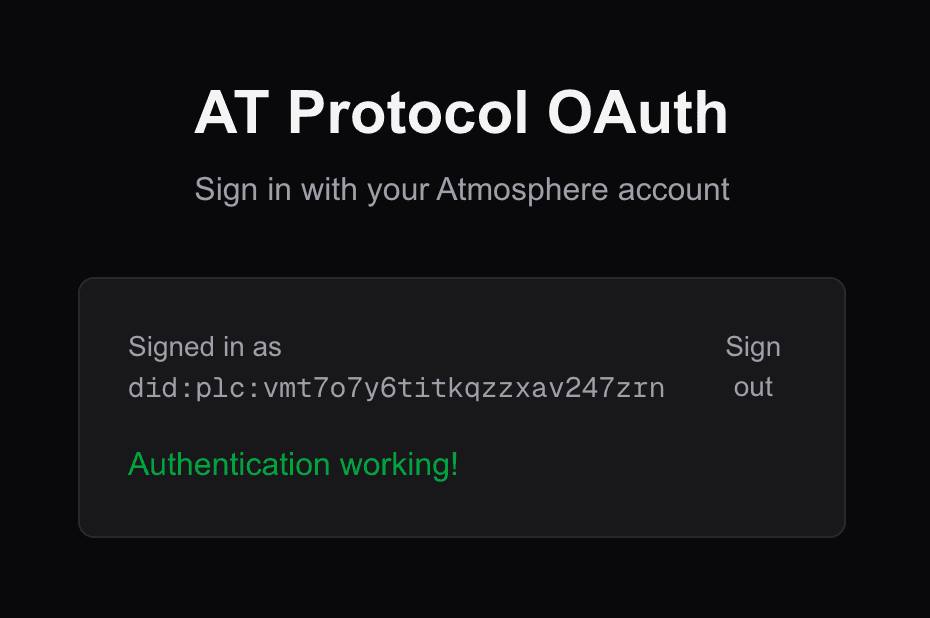

You should see "Authentication working!" with your DID:

Congratulations — you've now implemented working OAuth as a baseline, and can move on to more exciting features.

Part 3: Adding Database Persistence

The in-memory approach used so far works for local development, but for production you'll want a proper database. Let's add SQLite and some other dependencies to manage this:

If you're using pnpm as a package manager as suggeseted here, you should create a file called pnpm-workspace.yaml in the root of your project with the following content to ensure better-sqlite3 is built correctly in the next step:

onlyBuiltDependencies:
  - better-sqlite3

pnpm add better-sqlite3 kysely
pnpm add -D @types/better-sqlite3 tsx

Next, replace the contents of next.config.ts to use better-sqlite3 server-side:

import type { NextConfig } from "next";

const nextConfig: NextConfig = {
  serverExternalPackages: ["better-sqlite3"],
};

export default nextConfig;

Then, add the actual database connection in lib/db/index.ts:

import Database from "better-sqlite3";
import { Kysely, SqliteDialect } from "kysely";

const DATABASE_PATH = process.env.DATABASE_PATH || "app.db";

let _db: Kysely<DatabaseSchema> | null = null;

export const getDb = (): Kysely<DatabaseSchema> => {
  if (!_db) {
    const sqlite = new Database(DATABASE_PATH);
    sqlite.pragma("journal_mode = WAL");

    _db = new Kysely<DatabaseSchema>({
      dialect: new SqliteDialect({ database: sqlite }),
    });
  }
  return _db;
};

export interface DatabaseSchema {
  auth_state: AuthStateTable;
  auth_session: AuthSessionTable;
}

interface AuthStateTable {
  key: string;
  value: string;
}

interface AuthSessionTable {
  key: string;
  value: string;
}

Next, create the "migrations" that you'll run to populate the database schema. Create lib/db/migrations.ts:

import { Kysely, Migration, Migrator } from "kysely";
import { getDb } from ".";

const migrations: Record<string, Migration> = {
  "001": {
    async up(db: Kysely<unknown>) {
      await db.schema
        .createTable("auth_state")
        .addColumn("key", "text", (col) => col.primaryKey())
        .addColumn("value", "text", (col) => col.notNull())
        .execute();

      await db.schema
        .createTable("auth_session")
        .addColumn("key", "text", (col) => col.primaryKey())
        .addColumn("value", "text", (col) => col.notNull())
        .execute();
    },
    async down(db: Kysely<unknown>) {
      await db.schema.dropTable("auth_session").execute();
      await db.schema.dropTable("auth_state").execute();
    },
  },
};

export function getMigrator() {
  const db = getDb();
  return new Migrator({
    db,
    provider: {
      getMigrations: async () => migrations,
    },
  });
}

Next, create scripts/migrate.ts so the migrations can be run from the command line:

import { getMigrator } from "@/lib/db/migrations";

async function main() {
  const migrator = getMigrator();
  const { error } = await migrator.migrateToLatest();
  if (error) throw error;
  console.log("Migrations complete.");
}

main();

Add those command line scrips to package.json:

{
  "scripts": {
    "dev": "pnpm migrate && next dev",
    "build": "next build",
    "start": "pnpm migrate && next start",
    "lint": "eslint",
    // Add this line:
    "migrate": "tsx scripts/migrate.ts",
  }
}

And finally, update the stateStore: and sessionStore code blocks in lib/auth/client.ts to use the database. You'll need to import getDb at the top too:

import { getDb } from "../db";

...

stateStore: {
  async get(key: string) {
    const db = getDb();
    const row = await db
      .selectFrom("auth_state")
      .select("value")
      .where("key", "=", key)
      .executeTakeFirst();
    return row ? JSON.parse(row.value) : undefined;
  },
  async set(key: string, value: NodeSavedState) {
    const db = getDb();
    const valueJson = JSON.stringify(value);
    await db
      .insertInto("auth_state")
      .values({ key, value: valueJson })
      .onConflict((oc) => oc.column("key").doUpdateSet({ value: valueJson }))
      .execute();
  },
  async del(key: string) {
    const db = getDb();
    await db.deleteFrom("auth_state").where("key", "=", key).execute();
  },
},

sessionStore: {
  async get(key: string) {
    const db = getDb();
    const row = await db
      .selectFrom("auth_session")
      .select("value")
      .where("key", "=", key)
      .executeTakeFirst();
    return row ? JSON.parse(row.value) : undefined;
  },
  async set(key: string, value: NodeSavedSession) {
    const db = getDb();
    const valueJson = JSON.stringify(value);
    await db
      .insertInto("auth_session")
      .values({ key, value: valueJson })
      .onConflict((oc) => oc.column("key").doUpdateSet({ value: valueJson }))
      .execute();
  },
  async del(key: string) {
    const db = getDb();
    await db.deleteFrom("auth_session").where("key", "=", key).execute();
  },
}

All set! You can Ctrl+C the dev server if it's running, then start it again with:

pnpm dev

You should see "Migrations complete." and an app.db file created. Now this app will persist state and sessions across restarts.

Part 4: Deploying to Production

For production, you need a "confidential client" instead of the loopback client you used. This requires:

a public URL
a private key for signing
public endpoints for client metadata and JWKS

You don't need your own domain name to test the app at a public URL. You can host it on Railway by following our deployment guide. First, follow these steps.

Create a well-known JWKS endpoint that advertises your client's public key at app/.well-known/jwks.json/route.ts:

import { NextResponse } from "next/server";
import { JoseKey } from "@atproto/oauth-client-node";

// Serves the public keys for the OAuth client
// Required for confidential clients using private_key_jwt authentication

const PRIVATE_KEY = process.env.PRIVATE_KEY;

export async function GET() {
  if (!PRIVATE_KEY) {
    return NextResponse.json({ keys: [] });
  }

  const key = await JoseKey.fromJWK(JSON.parse(PRIVATE_KEY));
  return NextResponse.json({
    keys: [key.publicJwk],
  });
}

Next, update lib/auth/client.ts once more to use the confidential client configuration when in production:

import {
    JoseKey,
    Keyset,
    NodeOAuthClient,
    buildAtprotoLoopbackClientMetadata,
} from "@atproto/oauth-client-node";
import type {
    NodeSavedSession,
    NodeSavedState,
    OAuthClientMetadataInput,
} from "@atproto/oauth-client-node";
import { getDb } from "../db";

export const SCOPE = "atproto";

let client: NodeOAuthClient | null = null;

const PUBLIC_URL = process.env.PUBLIC_URL;
const PRIVATE_KEY = process.env.PRIVATE_KEY;

function getClientMetadata(): OAuthClientMetadataInput {
    if (PUBLIC_URL) {
        return {
            client_id: `${PUBLIC_URL}/oauth-client-metadata.json`,
            client_name: "OAuth Tutorial",
            client_uri: PUBLIC_URL,
            redirect_uris: [`${PUBLIC_URL}/oauth/callback`],
            grant_types: ["authorization_code", "refresh_token"],
            response_types: ["code"],
            scope: SCOPE,
            token_endpoint_auth_method: "private_key_jwt" as const,
            token_endpoint_auth_signing_alg: "ES256" as const, // must match the alg in scripts/gen-key.ts
            jwks_uri: `${PUBLIC_URL}/.well-known/jwks.json`,
            dpop_bound_access_tokens: true,
        };
    } else {
        return buildAtprotoLoopbackClientMetadata({
            scope: SCOPE,
            redirect_uris: ["http://127.0.0.1:3000/oauth/callback"],
        });
    }
}

async function getKeyset(): Promise<Keyset | undefined> {
    if (PUBLIC_URL && PRIVATE_KEY) {
        return new Keyset([await JoseKey.fromJWK(JSON.parse(PRIVATE_KEY))]);
    } else {
        return undefined;
    }
}

export async function getOAuthClient(): Promise<NodeOAuthClient> {
    if (client) return client;

    client = new NodeOAuthClient({
        clientMetadata: getClientMetadata(),
        keyset: await getKeyset(),
...

This will serve a client metadata document.

Finally, you'll need to generate a private key for signing. Create a script for that in scripts/gen-key.ts:

import { JoseKey } from "@atproto/oauth-client-node";

async function main() {
  const kid = Date.now().toString();
  const key = await JoseKey.generate(["ES256"], kid);
  console.log(JSON.stringify(key.privateJwk));
};

main();

Add this script to package.json:

{
  "scripts": {
    // Add this line:
    "gen-key": "tsx scripts/gen-key.ts",
  }
}

Run the script as pnpm gen-key and save the output. This will be PRIVATE_KEY, one of two environment variables needed for your deployment:

PRIVATE_KEY={"kty":"EC","kid":"...","alg":"ES256",...}
PUBLIC_URL=https://your-app.example.com

You can provide these as part of our Railway deployment guide. Follow those steps, and this app should then work from a public URL just like our demo instance.

Conclusion

You now have a complete, production-deployed app with persistent storage. However, it doesn't actually do anything with the AT Protocol yet! As you add features from here, you'll need to request additional permission scopes during the OAuth flow.

By default, the app requests only the atproto scope. The atproto scope is required and offers basic authentication for an atproto identity, but it does not authorize the client to access any privileged information or perform any actions on behalf of the user. Refer to the Scopes guide for more information.

To change the requested scope, update the SCOPE constant in lib/auth/client.ts. It should be a space-delimited string:

export const SCOPE = "atproto account:email repo:com.example.record";

This constant is used in three places:

The loopback client metadata (for local development)
The production client metadata
The login route's authorize call

By centralizing it in one constant, you only need to change it in one place. Now, when you log in to your app again, you'll be prompted to approve the additional scopes.

Congratulations on completing this tutorial! You now have a solid Next.js foundation for building Atproto apps with OAuth. From here, you can move on to our Statusphere Example App Tutorial.
